BIKESAFE

The WÖHR Bikesafe is the safe and space-saving automatic parking system for bicycles.

To protect bicycles from theft, a bike lock is not enough. With Bikesafe, bicycles are stored safely behind locked doors. Efficiently storing more than 120 bicycles on up to 8 parking levels, the design of the Bikesafe requires only a very small footprint and is therefore very space-saving. Depending on customer preferences and requirements, we offer the Bikesafe as a shaft version, tower version or mixed version. Common bicycles, including pedelecs and e-bikes, with an overall weight up to 30 kg can be stored in the Bikesafe.

SPECIFICATIONS

• Automatic parking system for bicycle
• Enormously fast access times from request to retrieval of bicycles
• Requires a footprint of approx. 50 m²
• Stores child seats, panniers and bicycle baskets
• Charging sockets for e-bike batteries available
• Operation via RFID chip, online booking platform or mobility card
• Individual façade design options

BICYCLE DIMENSIONS

• Height max. 120 cm and 140 cm, two bicycle heights in one system
• Length min. 150 cm, max. 200 cm
• For two different widths of handlebars from max. 76 cm up to max. 83 cm
• Weight max. 30 kg
• Wheel diameter min. 24" up to max. 29"
• Wheel width min. 22 mm up to max. 80 mm

PARKING BICYCLES IS MADE EASY

The transfer area is equipped with an operating panel next to the sliding gate. The user enters the tread plate and places the bicycle with both wheels on the wheel rail. The sliding gate opens a gap wide enough for the front tire and the bicycle is positioned into the sliding gate until the wheel stop. The sliding gate then closes and the bicycle is fixed. Afterwards the user leaves the tread plate and confirms the storage by holding the RFID chip to the operating panel. The bicycle is pulled in and stored. At the same time the laser scanner checks height, width and length of the bicycle.

If the bicycle exceeds the specified dimensions, the storage is interrupted and the bicycle is returned to the user. If the dimensions are correct and the bicycle can be stored, the user will see a confirmation on the display of the operating panel. The sliding gate closes automatically and the user leaves the transfer area. Behind the closed sliding gate, the bicycle is stored safe and fast in the Bikesafe.

Vertical Divider

Technical Information

Data Sheet Bikesafe Bikesafe Brochure

NEW!

SMART STORAGE
MAXIMUM SPACE

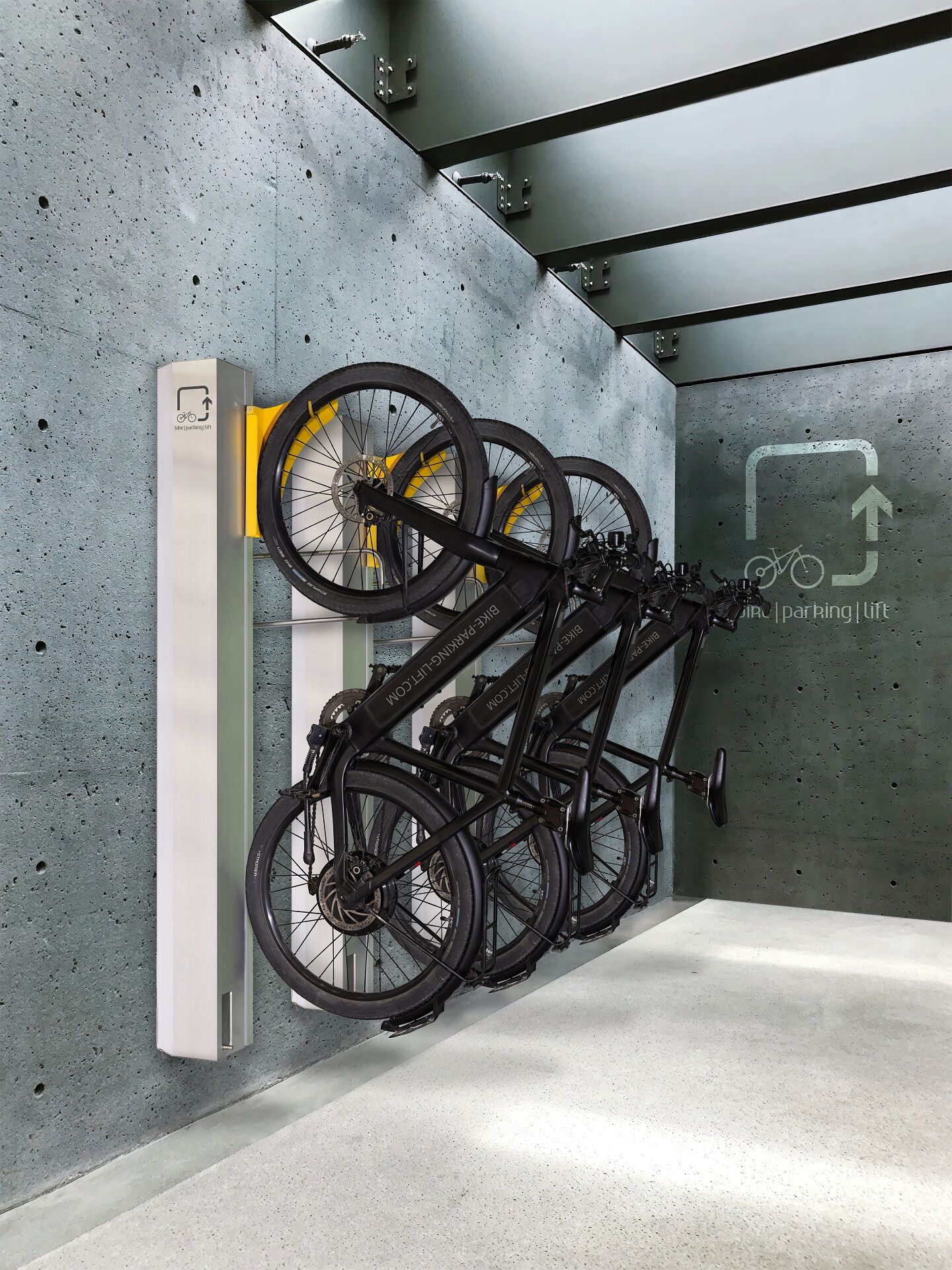

BIKE
PARKING
LIFT

A premium vertical bicycle storage solution that maximizes capacity while protecting bicycles in residential, commercial and public developments.

Learn More

✔ Space Saving

✔ Safe & Secure

✔ Premium European Design

✔ Residential & Commercial
